WLS-1041A
품명 : 70파이 리딩 스포트
■ SPECIFICATION

Type of LED : COB
Material : AL. Die-casting

Reflector : LENS (PMMA)

Heat Sink : AL. Die-casting
Input Voltage : 220~240V AC, 50~60Hz
Output Power(Current) : 10W(250mA)
Output Voltage : 36V DC
Color Temperature : 2700K/3000K/3500K/4000K/5700K
Beam Angle : 10D, 20D, 30D
Color Rendering Index : ≤80, ≤90
Operating Temperature Range: -20 to +40℃
Driver : Constant current LED driver
Custom Option : 3 Circuit Intrack Driver, DALI Intrack Driver​



Body color : White, Black

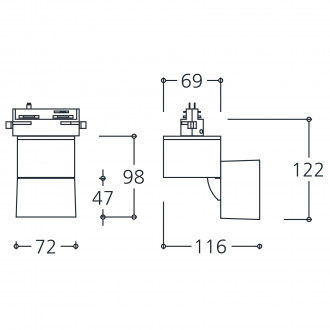

■ DRAWING
