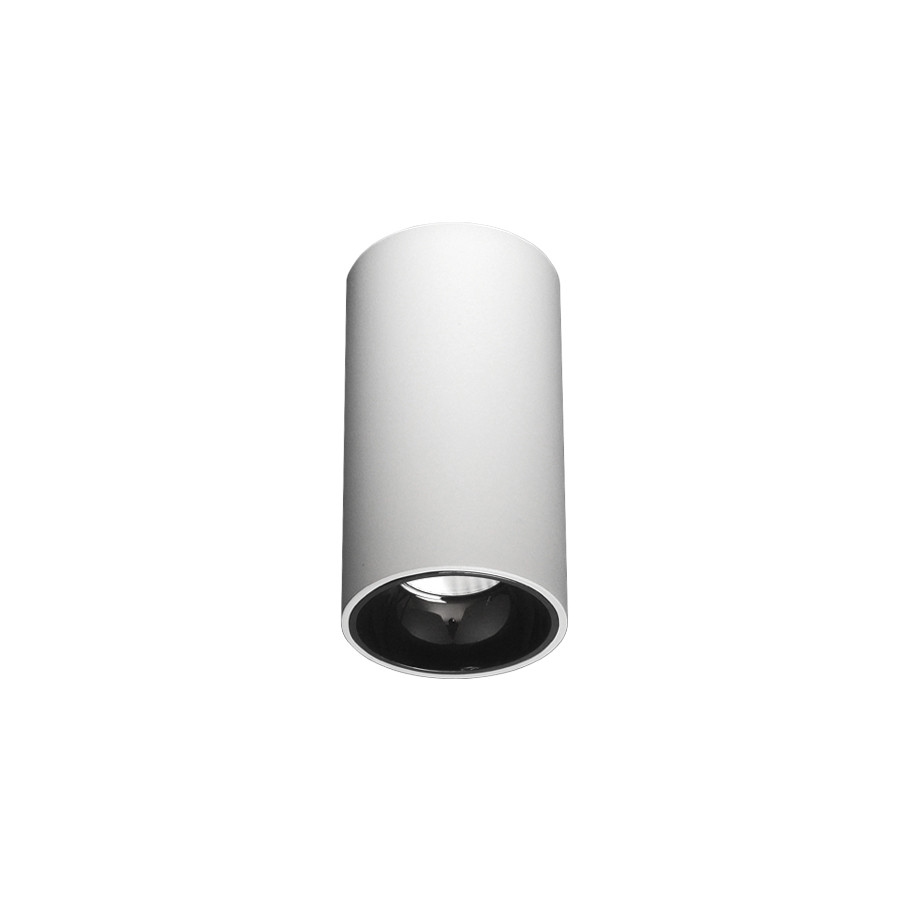

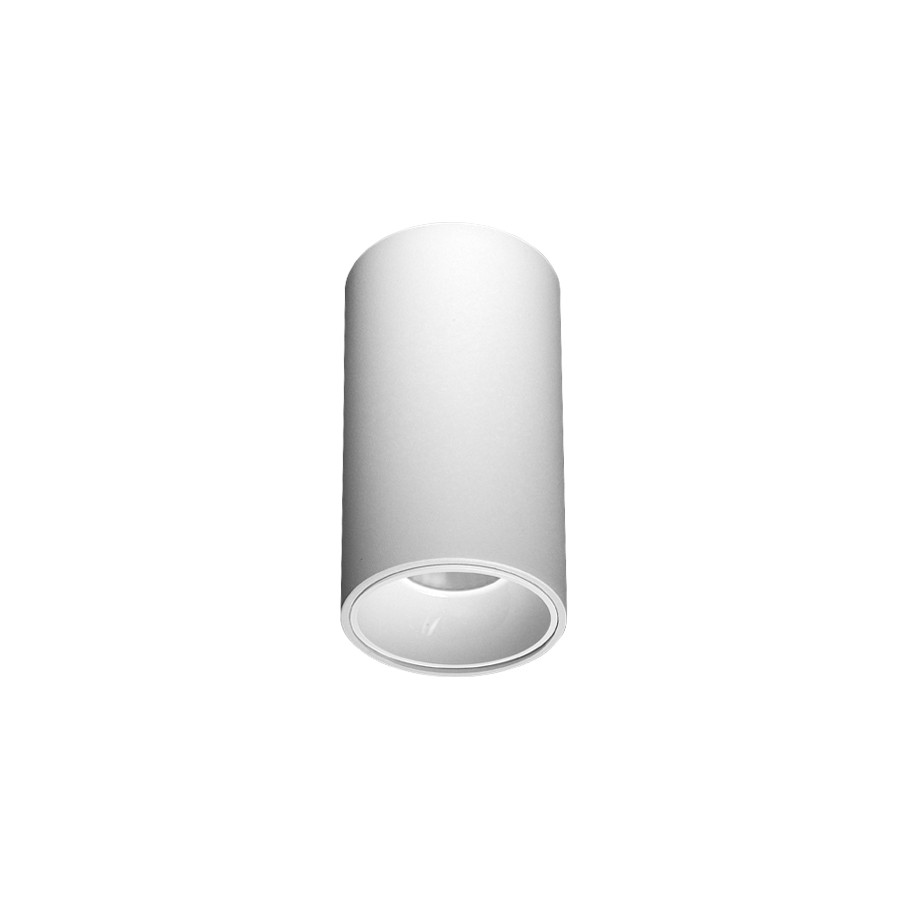

WGCP-1905A
품명 : 3인치 원통 COB 노출
■ SPECIFICATION
Type of LED : COB
Material : AL. Die-casting
Reflector : AL. Anodized Specular Silver
Heat Sink : AL.Die-casting
Input Voltage : 220~240V AC, 50~60Hz
Output Power(Current) : 8W(200mA) /10W(250mA) /15W(350mA)
Output Voltage : 36V DC
Color Temperature :
2700K/3000K/3500K/4000K/5700K
Beam Angle : 45D
Color Rendering Index : ≤80, ≤90
Operating Temperature Range : -20 to +40℃
Driver : Constant current LED driver

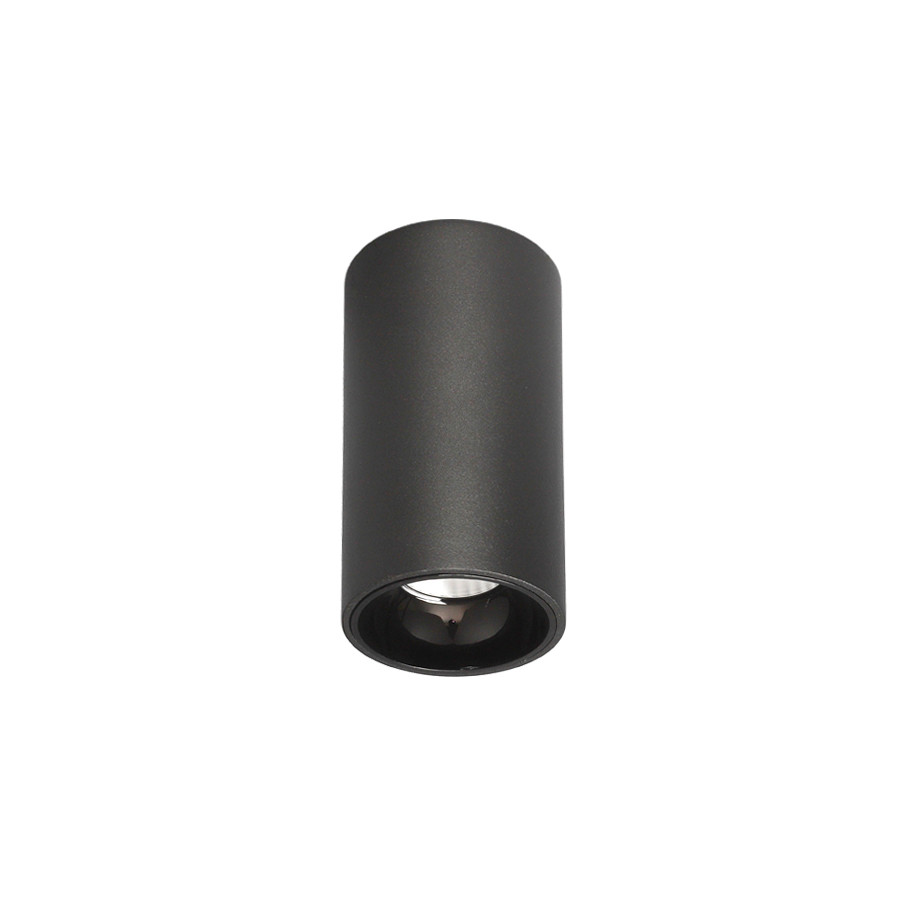

Body color : White, Black

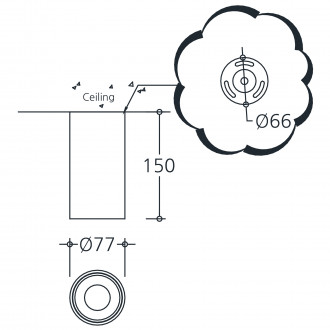

■ DRAWING
