WLS-1006

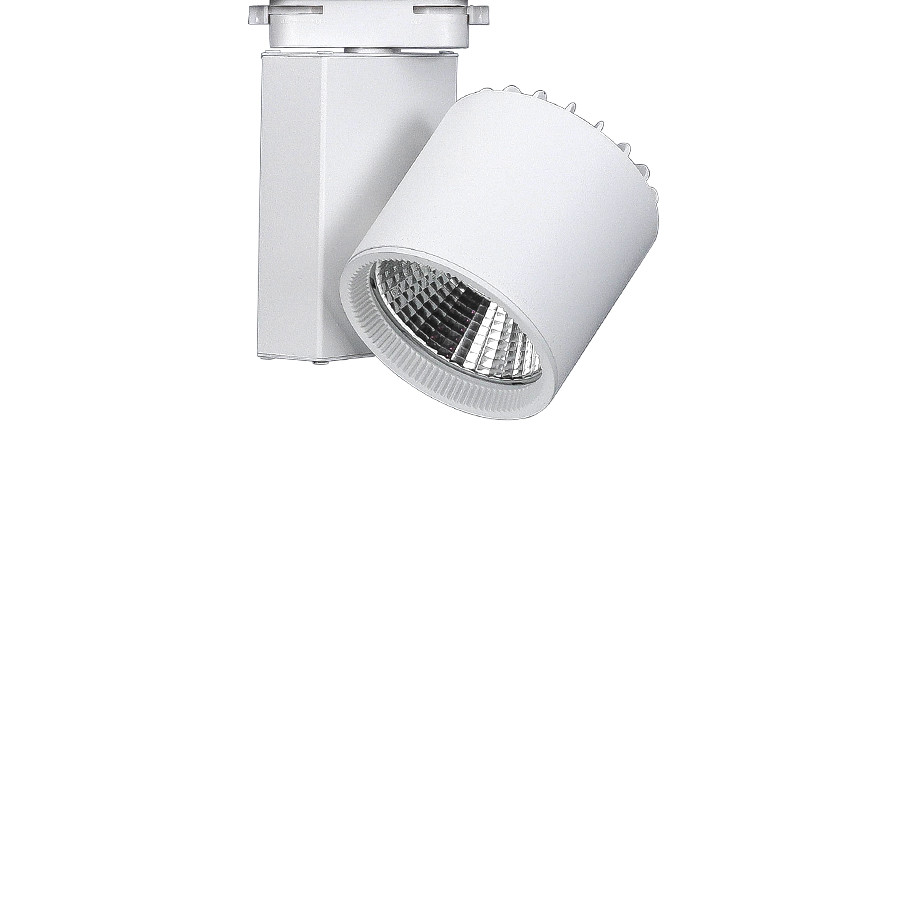

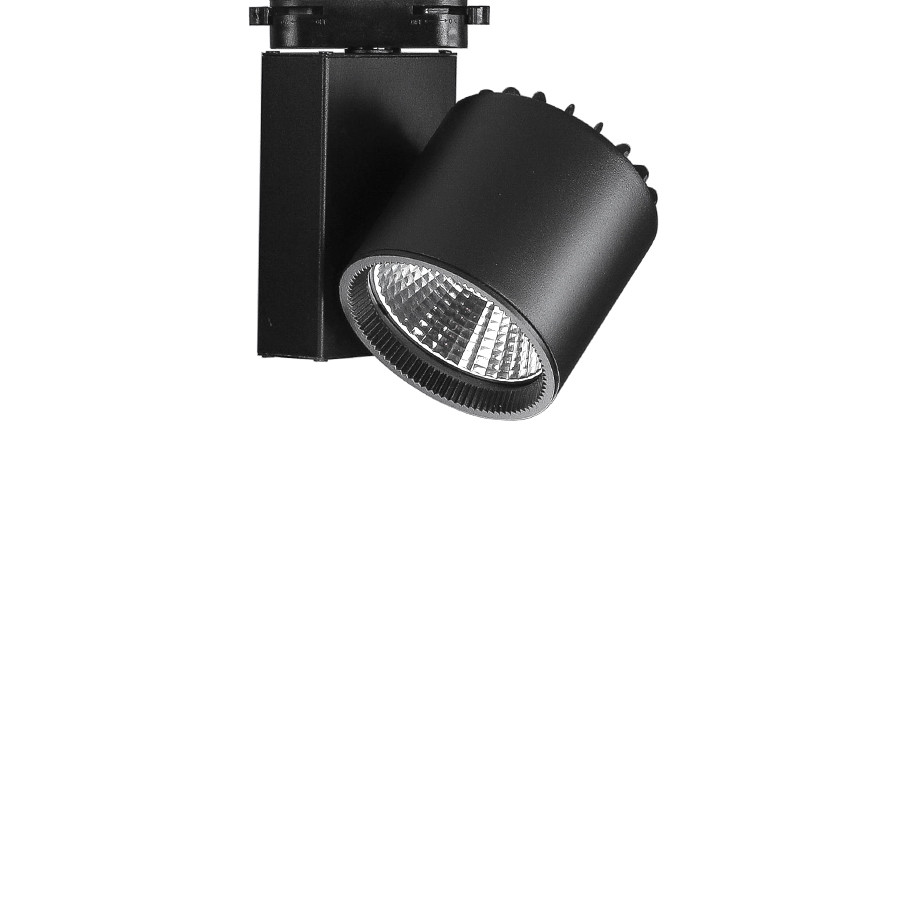

품명 : 미니원통 COB 스포트
■ SPECIFICATION

Type of LED : COB
Material : AL. Die-casting

Reflector : AL. Anodized Specular

Heat Sink : AL. Die-casting

Ballast case : AL. Die-casting​
Input Voltage : 220~240V AC, 50~60Hz
Output Power(Current) : 20W(500mA), 30W(700mA)
Output Voltage : 36V DC
Color Temperature : 3000K / 4000K / 5700K
Beam Angle : 24D
Color Rendering Index : ≤80, ≤90
Operating Temperature Range: -20 to +40℃
Driver : Constant current LED driver
Custom Option : 3 Circuit / DALI / Bluetooth Module

Body color : White, Black

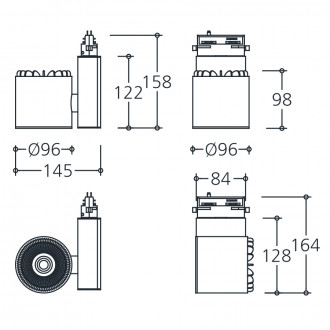

■ DRAWING
