WLM-16171
품명 : LED 도트 1구 매입
■ SPECIFICATION
Type of LED : SMD
Material : AL. Die-casting
Reflector : LENS
Apparent Reflector : ​Black (Custom : White)
Input Voltage : 220~240V AC, 50~60Hz
Output Power(Current) : 3.8W(90mA) / 5W(120mA)
Output Voltage : 36V DC
Color Temperature : 3000K (Custom :2700K/3500K/4000K/5700K)
Beam Angle : 38D (Custom:12D, 23D, 50D)
Color Rendering Index : ≤80, ≤90
Operating Temperature Range : -20 to +40℃
Driver : Constant current LED driver
Custom Option : DALI
Weight: 0.14Kg(140g)

Body color :​ White,Black

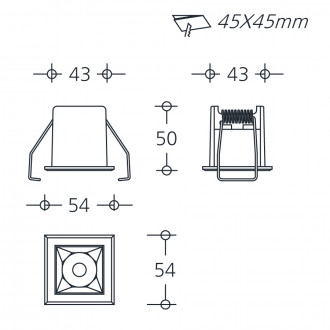

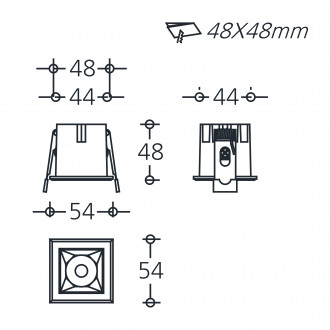

■ DRAWING
