상품간략정보 및 구매기능

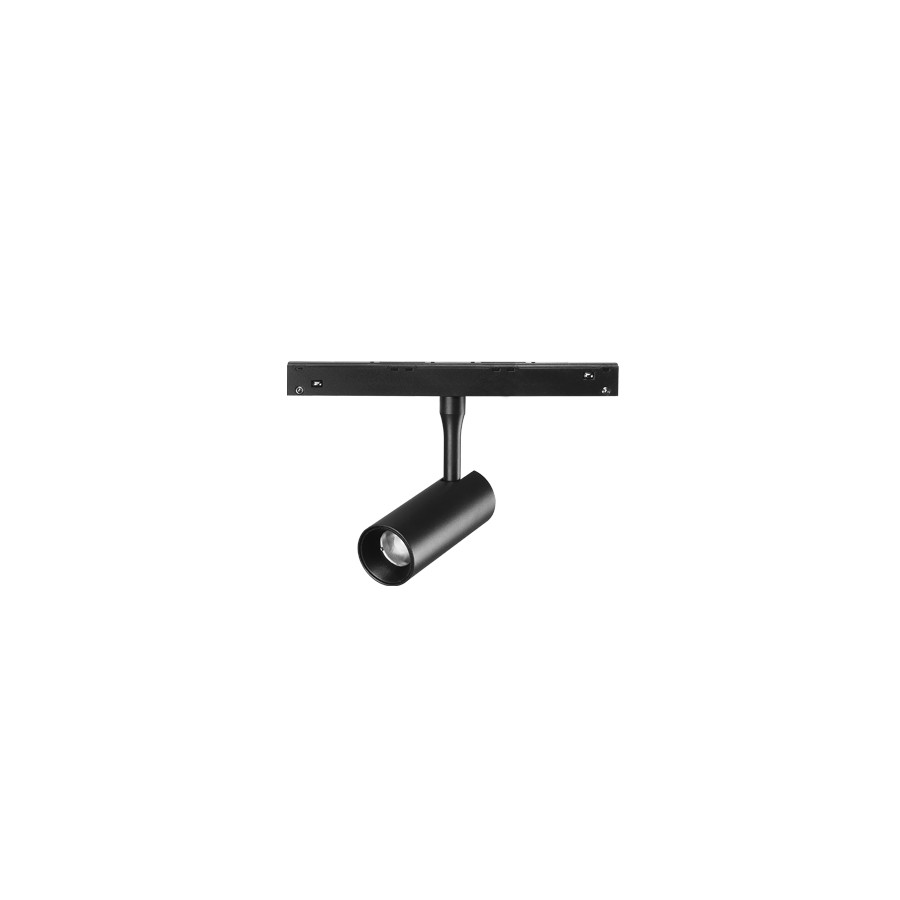

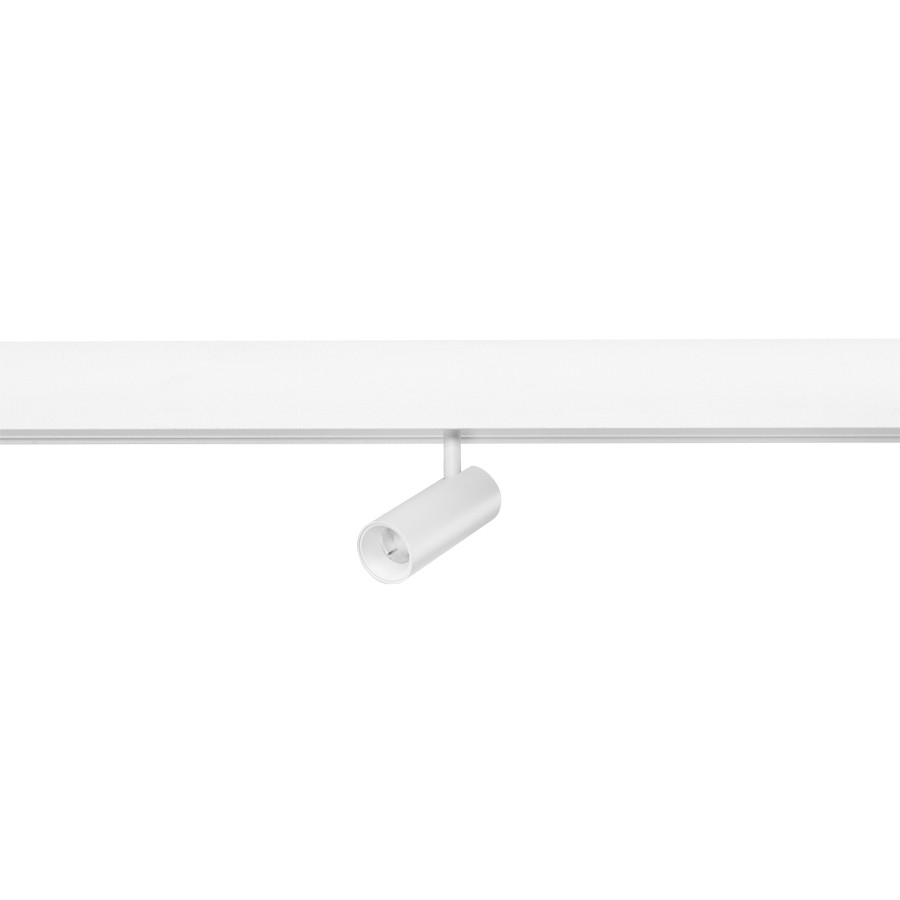

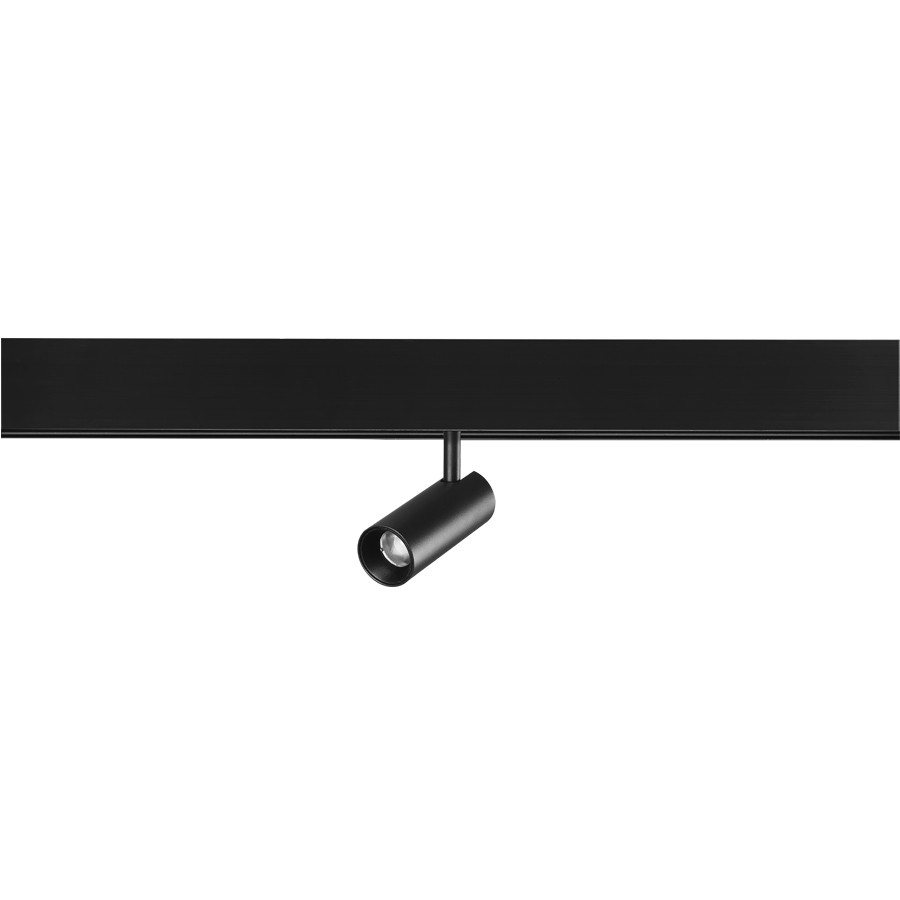

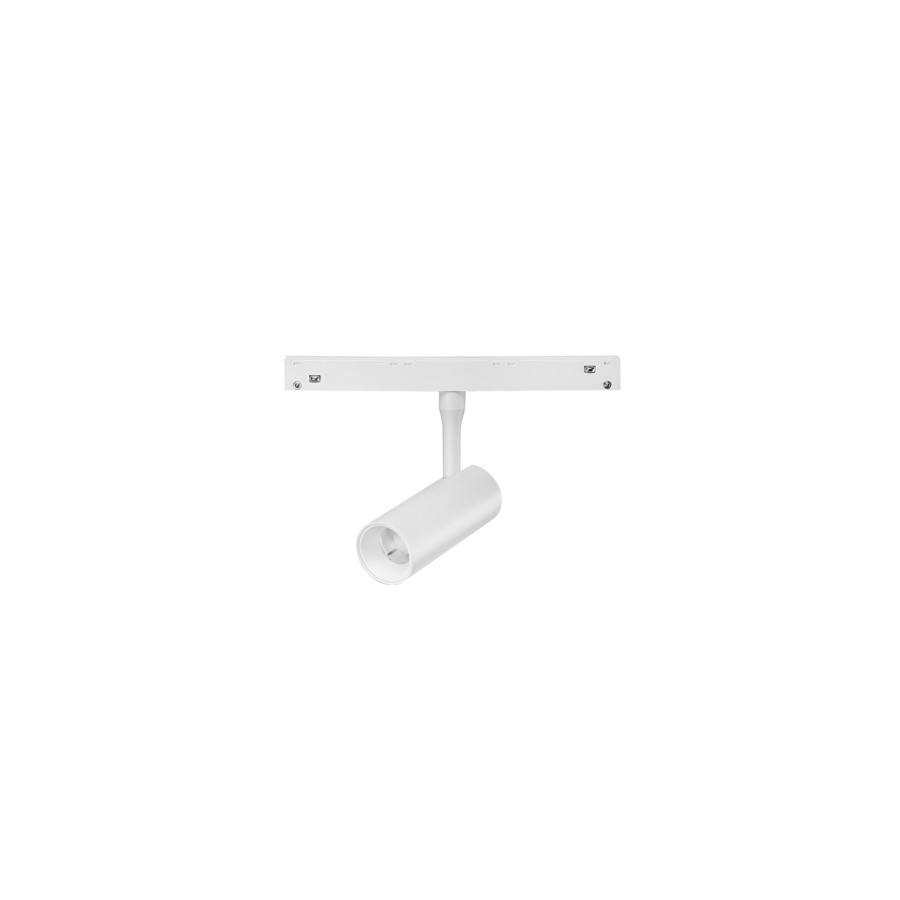

WDL-5105A
품명 : 35파이 소다 DC스포트
■ SPECIFICATION
Type of LED : COB
Material : AL. Extrude
Reflector : LENS (PMMA)
Output Power(Max Current) : 5W(125mA)
Input Voltage : 48V DC
Output Voltage : 36V DC
Color Temperature :
 3000K (Custom:2700K,3500K,4000K,5700K)
Beam Angle : 24D (Custom:15D, 36D)
Color Rendering Index : ≤80, ≤90
Operating Temperature Range : -20 to +40℃
Driver : Constant current LED driver
Weight : 116g

Custom Option : DALI / 0-10V

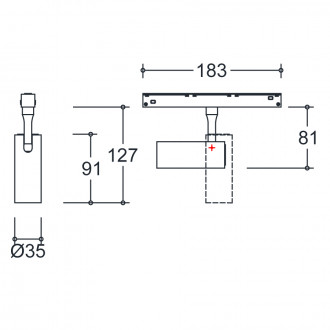

■ DRAWING
