상품간략정보 및 구매기능




WLM-16173
품명 : LED 도트 3구 매입
■ SPECIFICATION
Type of LED : SMD
Material : AL. Die-casting
Reflector : LENS
Apparent Reflector : ​Black (Custom : White)
Input Voltage : 220~240V AC, 50~60Hz
Output Power(Current) : 8W(200mA) / 10W(250mA)
Output Voltage : 36V DC
Color Temperature : 3000K (Custom :2700K/3500K/4000K/5700K)
Beam Angle : 38D (Custom:12D, 23D, 50D)
Color Rendering Index : ≤80, ≤90
Operating Temperature Range : -20 to +40℃
Driver : Constant current LED driver
Custom Option : Triac / (0)1-10V / DALI /Wireless Dim.
Weight 0.31Kg(310g)

Body color :​ White,Black

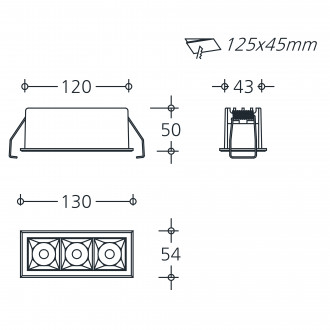

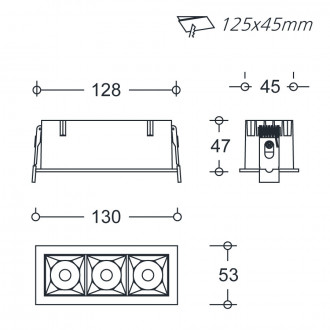

■ DRAWING
